Electric Cargo Bike | 750W Brushless Geared Hub Motor | KBO Ebike
New

Color
Regular pricePay now $1,699.00
/
coupon
$100 OFF for 2 Bikes CODE: KBO100
  • In stock
  • Shipped out within 3 Business Days

What’s the top speed of a KBO Ranger?
What’s the range of KBO Ranger per charge?
Does my height fit the KBO Ranger?
Will my KBO Ranger arrive assembled?
  • 2-Year Warranty
    Free Shipping
    Free shipping to the lower 48 states in the US. $150 to Canada
  • 2-Year Warranty
    2-Year Warranty
    All KBO bikes cover a 2-Year Warranty from the date of receiving the item.
  • 2-Year Warranty
    14 Days Returns
    Customers are responsible for return shipping costs.
Electric Cargo Bike KBO Ranger
Integrated 36V, 9.6Ah Lithium-ion Battery With Panasonic Cells

In Frame and Removable 48V 17.5Ah Lithium-ion Battery with Samsung/LG Cells

A KBO Bike battery life is one of its most significant advantages, rated for 900 complete charge cycles. With an 840Wh battery capacity, you can ride up to 60 miles on a single charge.

Powerful Sustained 750W Brushless Geared Hub Motor

Powered with a continuous 750W brushless geared hub motor, you won't have to worry about carrying heavy loads and climbing steep uphills.

Light Weight
Sleek Craftsmanship

48V 3 Amp Quick & Smart Charger

It takes just 5 hours to fully charge the battery, reducing the time between rides and keeping up with the quick pace of your riding needs.

36V LED Headlight

48V LED Headlight

To turn on the light, press and hold the "UP" button for 3 seconds. This function makes cycling at night safer and allows vehicles to notice you.

Brushless Geared Hub Motor

Integrated Brake Rear Light

The rear light is an integrated LED light that is powered by the battery pack. When you apply the brakes during a ride, the rear brake light illuminates immediately.

Mechanical Disc Brakes

The Shimano 7-speed Shifter

It's designed for your riding experience and allows you to change the gears for adapting to different terrains on-demand.

Comfortable Saddle

Mechanical Disc Brakes

The front and rear 180 mm disc rotors give sufficient braking force even in the roughest of conditions.

Road Bike Tires

Extra-large, Adaptable Rear Rack

The sturdy aluminum rear rack can support loads of up to 120 pounds. You can take a ride with your loved ones, transport your children from school, or transfer some heavy equipment.

LCD Backlight Display

Ergonomic Half Twist Throttle

When tired of pedaling, take a break and cruise. Gently twist the throttle on your right to accelerate.

36V LED Headlight

Adjustable Saddle

This bike seat is a durable and comfortable saddle that decreases the impact of road bumps. You may adjust your posture by moving the saddle up and down as well as back and forth.

Brushless Geared Hub Motor

20"*3.0" CST Tires

To prevent punctures, the tires are manufactured with high-quality materials that resist punctures caused by sharp objects. Wider than typical commuter tires, it provides a more stable and smooth ride on your commute.

Mechanical Disc Brakes

Intelligent Installation Points

Fitted with an intelligent mounting bracket that can support up to 50 pounds. You can load it in any way you choose.

Comfortable Saddle

LCD Backlight Display

The display provides you with a range of information to help you keep track of your riding conditions. A charge indicator, a speedometer, an odometer, a trip odometer, a pedal assist level, and more features.

Road Bike Tires

Full Fenders

Fenders on both the front and rear are complete with all of the necessary hardware. They're incredibly resilient and keep you dry and clean from water and mud.

LCD Backlight Display

Center Stand

Built with rust-resistant, sturdy, and durable aluminum alloy.

Specs
Components
Geometry
  • Battery 48V 17.5Ah Lithium-ion battery with LG cells
  • Range 35-60 miles
  • Hub Motor Sustained 750W brushless geared motor
  • Total Payload Capacity 400 lbs
  • Recommended Rider Heights 4'11" - 6'3"
  • Charger 3.0 Amp Quick charger
  • Controller 48V /22A
  • Display LCD backlight display
  • Weight 77 lbs
  • Pedal Assist 0-5 level
  • Tires 20" x 3.0" CST puncture-resistant tires
  • Derailleur Shimano 7 speed derailleur
  • Rear Light Integrated brake tail-light
  • Brake Dual 180mm mechanical disc brakes
  • Chain KMC chain
  • Sensor Sensitive cadence sensor and speed sensor
  • Crank 170mm forged alloy
  • Throttle Twist throttle on the right
  • Pedal Alloy pedal with reflectors
  • Bike Frame 6061 Aluminum frame
  • Front Light 48V LED light
  • Saddle Sturdy and comfy saddle
  • Seat Post Diameter 33.8mm/length 350mm
  • Center stand Heavy-duty aluminum
  • Spokes Stainless spokes(Front 13G/Rear 12G)
  • Stem Diameter 30mm
  • Handlebar Diameter Sides 28.6mm/middle 31.8mm
KBO eBike Geometry
  • 1 . Total Length 69"
  • 2 . Handlebar Height 53"
  • 3 . Wheelbase 47"
  • 4 . Minimum Seat Height 27.5"
  • 5 . Maximum Seat Height 37.5"
  • 6 . Chain Stay Length 21.6"
  • 7 . Standover Height 15.7"
  • 8 . Reach 15.7"
  • 9 . Wheel Diameter 20"
  • 10 . Head Tube Length 7.1"
  • 11 . Handlebar Length 28.3"
  • 12 . Seat Tube Length 15.6"
  • 13 . Minimum Pedal Height 4.7"

*KBO has the right without notice to the consumer to substitute components of at least equal quality for advertised KBO ebike components in the event of the unavailability of such advertised components.

Customer Reviews

Based on 26 reviews
96%
(25)
4%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Dr. E
Best bang for the buck with bonuses

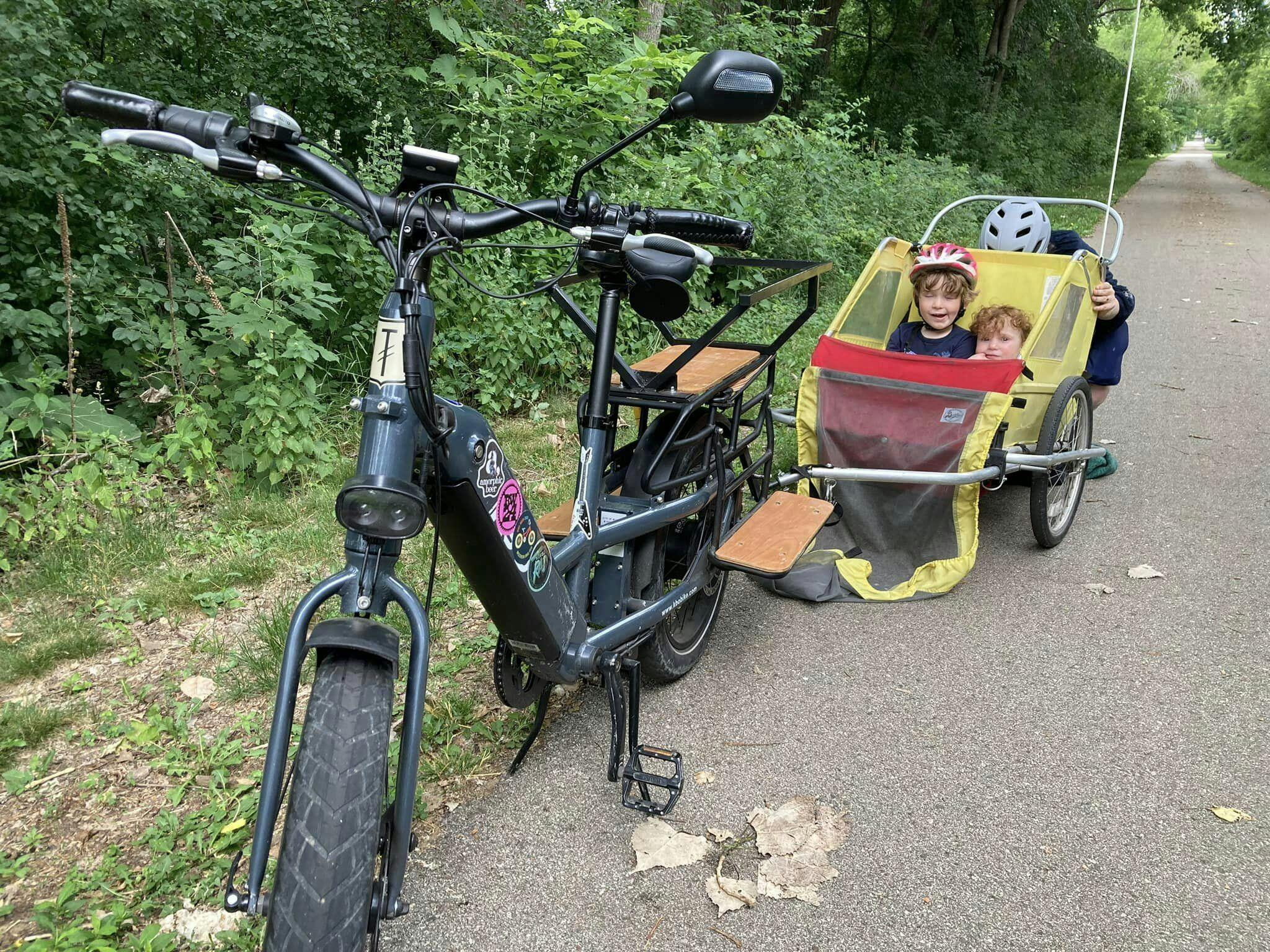

Anyone who wants to spend more than 2K on an electric cargo bike can go ahead and do it if they have the means and desire to spend their hard earned money. But, it's not necessary given the KBO Ranger does it all and more for 1699 tax included. This is my 2nd electric bike and 6th bike overall, but it is my #1 go to at all times. It rides like a more compact dirt bike with its 20" wheels and low dynamic profile. It zooms past road bikes with its pedal assist and cruises at a respectable speed, oftentimes, surpassing the flow of traffic on busy city streets. I ride regularly with my two young boys on back (wear your helmets, folks). We have been to every park in the area plus off road bike paths and even through fields with the highly capable 3" tires. I don't worry at all about speed bumps or rocks and gravel as they're beefy enough to handle them. I think the only thing I would change about the bike is it's name, KBO. Having initials is nice and I know it's an acronym, but it's dull and hard to remember. I covered my graphics with large matching mountain stickers. Nobody knows what I ride and every RadWagon, Packa, Yuba and Surly Cargo owners in my area drool over my sweet add-ons I purchased with the difference in cost. Buy this cargo bike if you're looking for the most affordable, yet highly capable, and well-designed bike without showing off your exposed battery. It makes sense and I use it over my electric vehicle as much as possible. Happy riding, everyone!

J
Jerry Love
Ranger bike

Bike does actually what I needed it to do. FANTASTIC!!!

a
amy strawgate
First Ride of the Season

Love my new KBO Cargo Ranger. The weather has finally broken and I rode it to the beach and back 22 miles this week. The bike handles great and is easy to get on and off. It drew quite a lot of attention and several people wanted to know more. So far its a great product and great service.

W
Wendy Washington
KboRanger

I love the Kbo Ranger Ebike!!!

C
Charles Pugh
Super cute love it

The best electric bikes I ever had.

B
Brad Conkey
Excellent bike to haul cargo

I just picked up my bike at KC in Traverse City and brought it to Mackinac Island. I was looking for a bike that could haul cargo, as cars are banned from Mackinac and I have to haul a lot of stuff to my cottage. This bike is exactly as it is advertised. It is built well, comfortable and hauled a loaded up cart with ease. Love the orange color too! You reps at KC did an excellent job and I will be send many referral orders to them. Thank you.

M
Michael Brown
September.

I want to buy one in September, after I do I'll give a full review. I am 51 years old and I have never had a drivers license. I ride everywhere.

b
brian f.
Solid fun, great value..

Got my orange Ranger a few weeks ago (family named him Julius), and am amazed. I'm a large guy (notice I didn't say 'tall') and just for giggles I rode it at full throttle no peddling to test range under those conditions, and made it about 25 miles - half the time with groceries on the back - which I think is AMAZING given the beefiness of the bike and rider. I'm riding it now at level 4 (out of 9, there is a Youtube video to change the levels from 5 to 9 for more control) which means peddling with some tension but not a lot, to keep at 14-ish mph). I've gone around 8 miles (in Florida so largely flat) and the battery meter hasn't budged. Haven't found a way to remove the speed limiter yet...

Note that a couple 10" rubber bungee cords strapping the bottom of a cheap $4 milk crate to the back rack is perfect for hauling a couple bags of groceries...I haven't tried anything on the front yet (** the KBO front rack looks awesome but soooo expensive...I'll wait for a sale (hint))!
