Hey, I’m Danny and we are going to be doing an unboxing today for KBO Breeze commuter electric bike. Let’s open it up. If you have a box cutter and or scissors, it will work great.

In the box, we got the battery charger, tool, headlamp, quick release skewer, pedals and manual.

Unwrap it and get started with your scissors. Be careful when you’re cutting things because we got a bunch of wires and a couple moving parts here.

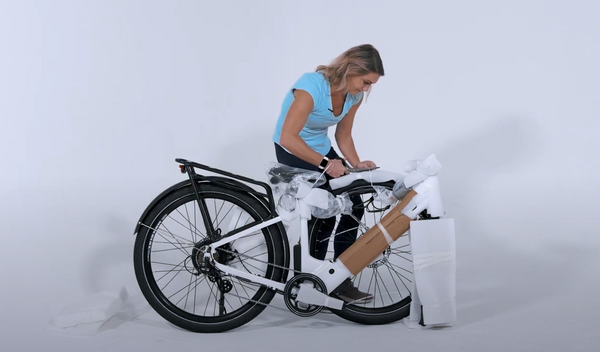

please be careful when you cut the things of kbo breeze because we got a bunch of wires

Step 1: Install the handlebars. Remove the four screws from the stem, ensuring the linear markings on the handlebars are centered and handlebars are adjusted to the comfortable position. Finally, tighten the screws with the assembly tool.

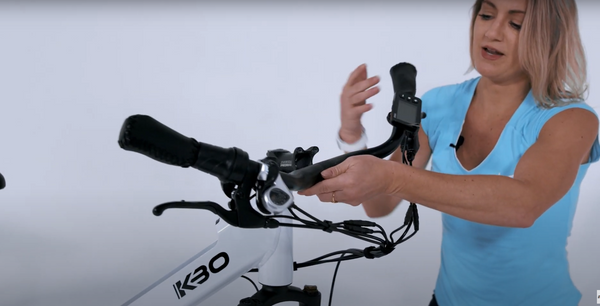

assemble the handlebar on the kbo breeze step thru

Step 2: Install the front wheel. Remove the plastic axle guards from the front wheel being sure not to touch the brake rotor set. Open the quick skewer and remove the thumb nut and cone spring. Carefully lower the fork and ensure the brake rotor goes into the caliper. Next, align the dropouts with the axle of the wheel hub to make sure the fork dropouts are fully seated on the axle. Install the quick skewer starting from the brake rotor side of the wheel and then push quick release skewer through the hub. Keep two cone springs pointed towards the wheel hub. Tighten the thumb nut until the quick release lever is held in line with the axle, and then use your palm of your hand to close the quick-release skewer.

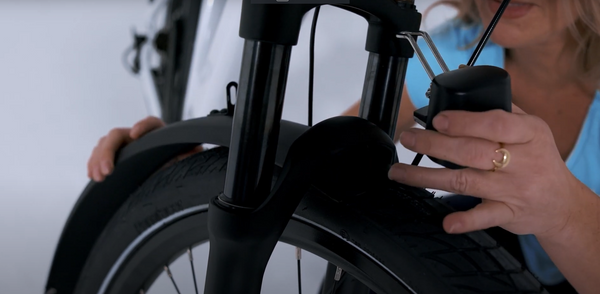

assemble the fenders and headlight of the kbo breeze step thru

Step 3: Install fenders & the headlight. Please attach the front fender and the headlight by the screw and then connect the headlight cables according to the arrow pointing.

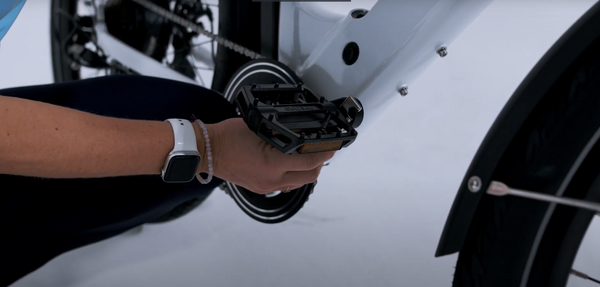

assemble the right and left pedals of the kbo breeze step thru

Step 4: Install the pedals. The left and right pedals are marked on both ends. First, install the right pedal by tightening the pedal in a clockwise direction. The left pedal is tightened by turning the pedal in a counterclockwise direction. Both pedals should be tightened to 35 Newton meters by using a torque wrench.

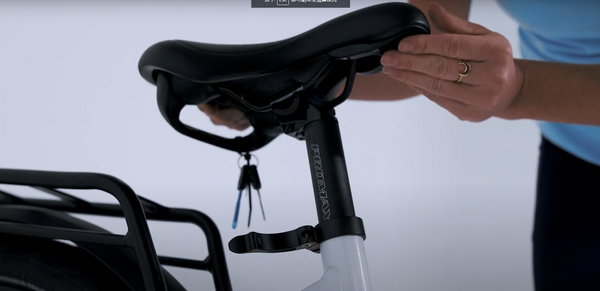

adjust the seat height of the kbo breeze step thru

Step 5: Adjust the saddle height. loosen the seat clamp, remove the seat post and ensure the seat clamp is centered over the hole in the seat tube. Insert the seat post into the slot, adjust the saddle height to a suitable height, and tighten the adjustment nut.

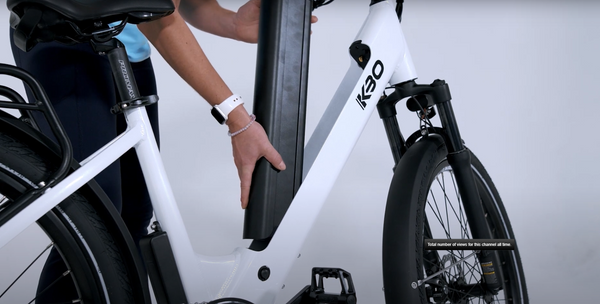

lock the battery into the frame of kbo breeze step thru

Step 6: Check if the battery pack is locked into the frame of the KBO Breeze. When you want to take off the battery, insert the key, and turn to release the battery pack. The battery pack can be removed and charged separately. Finally, don’t forget to connect and check the charger.

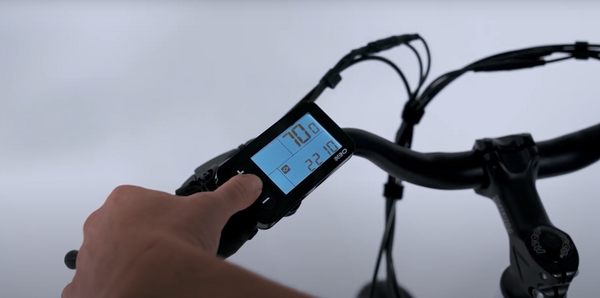

press and power the "M" button for three seconds

Press and hold "M" button for 3 seconds to power on. The integrated brake taillight is activated when the brakes are applied. And you also can press and hold "+" for 3 seconds to open the front light and rear light.

You can use the thumb shifter to change and adjust the gears.

It’s worth noting that please read the owner’s manual carefully or consult a certified local bicycle service provider for assistance in addition to contacting KBO Bike for help if you have any questions. Find out more answers to your question at KBO support center.
